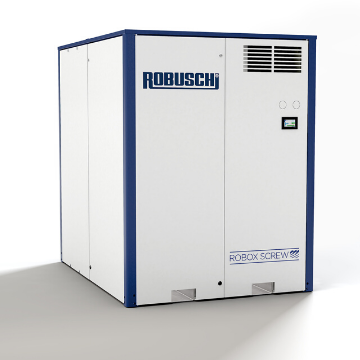

The ROBOX Screw blower unit up to 1,000 mbar(g)
NEW RANGE FOR SIZES 3.5 AND 4
The new Robox blower unit design allows you to fit either a lobe or a screw airend into our engineered Robox enclosure. To accommodate this innovation, our teams performed a complete package redesign. You can call it thinking outside the box to create our best Robox yet.
The Robox Screw is able to reach up to 1,000 mbar(g) and vacuum up to 300 mbar(a) with a maximum capacity of 10,100 m³/h.
Unique design, best in class footprint, low noise, easy installation, easy to service and maintain access throughout the range.
Unique Design, Best-in-class Footprint
Thanks to its exclusive features, the new Robox Screw blower unit has compact dimensions with the possibility of side-by-side installation. It is easy to be installed with no requirements for ducting. The Robox Screw blower’s compact dimensions will optimise your floor space usage. The new Robox Screw blower unit size 3.5 requires on average 11% less space to deliver 22% more air flow.
One Package Two Technologies
Take advantage of the one solution for both lobe and screw blower technologies. Whether revamping plants, or your processes, you can review and compare each technology’s benefits for your operation before you commit to buy.
Low noise emissions are ensured by our new discharge and suction silencer design. In addition, canopy enhancements provide noise reduction thanks to special sound proofing material and upgraded panel thickness. In addition, the enclosure air inlet and outlet ducts are muzzled with a lined single-chamber plenum and lined bends.
Save time and money thanks to the easy and flexible installation of the new Robox Screw blower unit. Handle the Robox with ease utilizing the rigid base which has dedicated channels for forklifts. Place it on any even surface, with no need for special foundations. Thanks to its compact design, the Robox can be quickly and easily integrated into your existing system.
Accessible Service and Maintenance
The design of this new Robox Screw blower unit design ensures that the service points are easily accessible.
To help you see inside, the enclosure side doors are hinged and removable.
CDL- RSW – Premium Oil-free Airends
The new Robox Screw blower unit accommodates the state-of-the art CDL airend. The patented screw blower has 3x5 profile rotors designed with wide-diameter shafts to reduce the deformation caused by internal and external loads. This ensures the blower can work efficiently in even the harshest conditions.
The CDL airend is equipped with seals that use a permanent non-wearing design to extend longevity, and reduce maintenance costs. It also uses high precision and low friction bearings to provide absolute strength and stability on multiple planes to handle extreme applications.
The RSW airend is equipped with a wide-diameter shaft rotor design to reduce the deformation caused by internal and external loads. This ensures that the screw blower unit can work efficiently in even the harshest conditions. The bearings have an increased lifespan thanks to the reduced number of revolutions they have to make. The seals on the conveyed gas and lubricating oil are also “wear-free”. The RSW airend is available for the current sizes 2,3 and 5.
New Compact Suction Silencer
A newly designed Silencer is equipped with a dedicated filter cartridge for improved reliability and quicker maintenance. This minimises pressure drops. Noise reduction is provided by a new absorptive and reactive internal resonance chamber design.
Robust Discharge Silencer
A Reactive discharge silencer with increased thickness and spark arrester. This design prevents contamination of conveyed gas with sparks generated from the blower. Costly spark traps are no longer necessary.
Proven and robust VRC check valve specifically designed by Robuschi is now positioned within the device to ensure a quick and easy inspection, and replacement.
This system provides lubrication alternatives for various operating environments. It is a dual splash lubrication system that is simple, reliable and compact. It also provides minimal maintenance without the need for an external oil circuit. A forced lubrication system can also be ordered as an option.
State-Of-The Art Noise Enclosure
The new powder coated enclosure ensures long lasting protection from corrosion, chemicals and the environment. In addition, the noise enclosure’s structure is equipped with tight-fitting frames for the doors and roof support. All the panels/doors are independent of each other and easily removable for inspection.
The new hood design inhibits noise emissions thanks to the enclosure’s air inlet and outlet ducts which are muzzled with a lined single-chamber plenum and lined bends. The closed baseplate is suitable for any type of floor guaranteeing proper noise reduction.
In addition the enclosure provides:
Leading-edge Robox Connect Controller
The new touch screen controller, Robox Connect, is very user friendly with an intuitive menu. It provides you with a real-time view of the blower unit’s operation, and allows you to continuously monitor the device. This ensures you spot problems and malfunctions before they happen thereby protecting your investment.
Robox Connect manages a variety of operating functions available from a built-in screen, as well as remotely. You can monitor and configure each measured parameter and alarm from any display using a remote connection via Ethernet.
Industry 4.0 Solution
Robox Connect is compatible with iConn, the Industry 4.0 solution. iConn is the new and smart and proactive real-time monitoring service that delivers in depth and real-time data. This is essential for the optimised and efficient operation of the device. iConn provides remote availability via the Internet, which saves you time by eliminating the need to be onsite for diagnostic activities.
iConn allows you to perform online tasks, such as supervision, optimising maintenance and parts management, and paves the way for the development of predictive models.
The Robox Screw blower unit is available in a new plug and play version. It’s simple, reliable and a great value for your money. This includes:
