Discover more
Download a comprehensive product brochure to discover our new Robox Side Channel Blower.
Side channel blower
To load this content, approve your cookie preferences and allow the required cookies.
Design
Simple Components for a Robust Design
1. Cover
2. Impeller
3. Housing
4. Bearing
5. Base
6. Motor
7. Silencer
8. Cooling fan
How Does a Side Channel Blower Work?
- The gas/air enters the side channel blower through the inlet port and into the rotating impeller.
- Here the gas/air particles are pushed in the direction of the rotation of the impeller.
- Centrifugal force created by the accelerating blades pushes the gas outward, while the pressure increases.
- With every rotation, more kinetic energy is added and converted into a rise in pressure. The compressed air/gas mixture leaves the impeller blades and is conveyed through the discharge silencer
Technical Features & Advantages
- Highest Quality for a Maintenance Free & Long-lasting Solution: The new Robox Side Channel blower performs flawlessly and with virtually no maintenance. Every component is manufactured to our highest quality standards and tested for guaranteed continuous operation and maximum performance.
- Contact Free Compression: The impeller rotates with no contact between the rotating parts. Wear-and-tear is avoided and lubrication is not needed.
- Reduced Footprint: The compact design typical of this technology allows installation where space is limited improving the operating process and maximizing overall cost efficiency.
- Low Noise: The blower package includes inlet and discharge silencers specially designed to reduce the noise of the blower. Reduced noise emissions are also assured by the absence of air pulsations.
- Oil Free for No-Contamination: Our Robox Side Channel is completely oil-free to meet the most rigorous of environmental standards with reduced risk of contamination.
- Direct Coupling: The Impeller is directly mounted on the electric motor shaft. Resulting in less vibration and reduced noise levels, direct coupling can increase efficiency over the entire operating life of the blower.
- Fixed or Variable Speed: The Robox Side Channel operates at a fixed speed. In order to enhance the operating range, it can also be equipped with an integrated Variable Frequency Drive (VFD), mounted directly on the package (plug & play solution - it only needs a connection to the pipework and electric power).
- Other advantages: Robuschi Side Channel Blowers are available with different drive speed options. Adjustable speed is possible via external or integral Invertor. Motors include both 50 and 60Hz frequency options in a range of voltages and are supplied as standard with high efficiency IE3 EN 60034 approved motors Rated to IP 55 protection class certification.
Model Arrangements
Robox Side Channel Blowers can cover a range of flow and pressure combinations. The followingarrangements are available and allow achieving the best performance in each operating conditions:
- single stage
- single stage with increased/higher flow
- double stage
- double flow
- options also available
Accessories

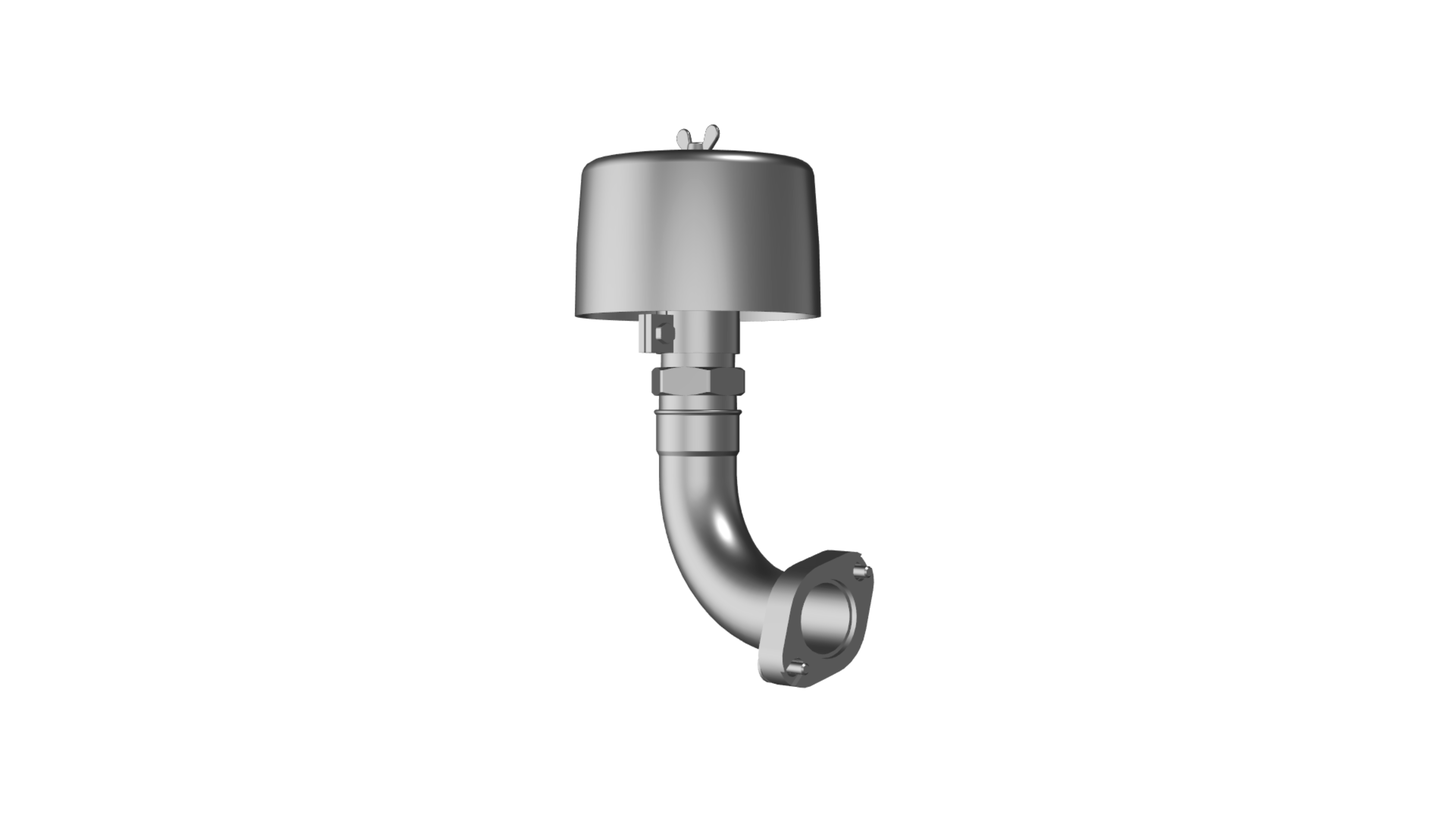

- Suction Filter
- Rubber buffer
- Pressure Relief Valve Adapter Gasket and Skrews

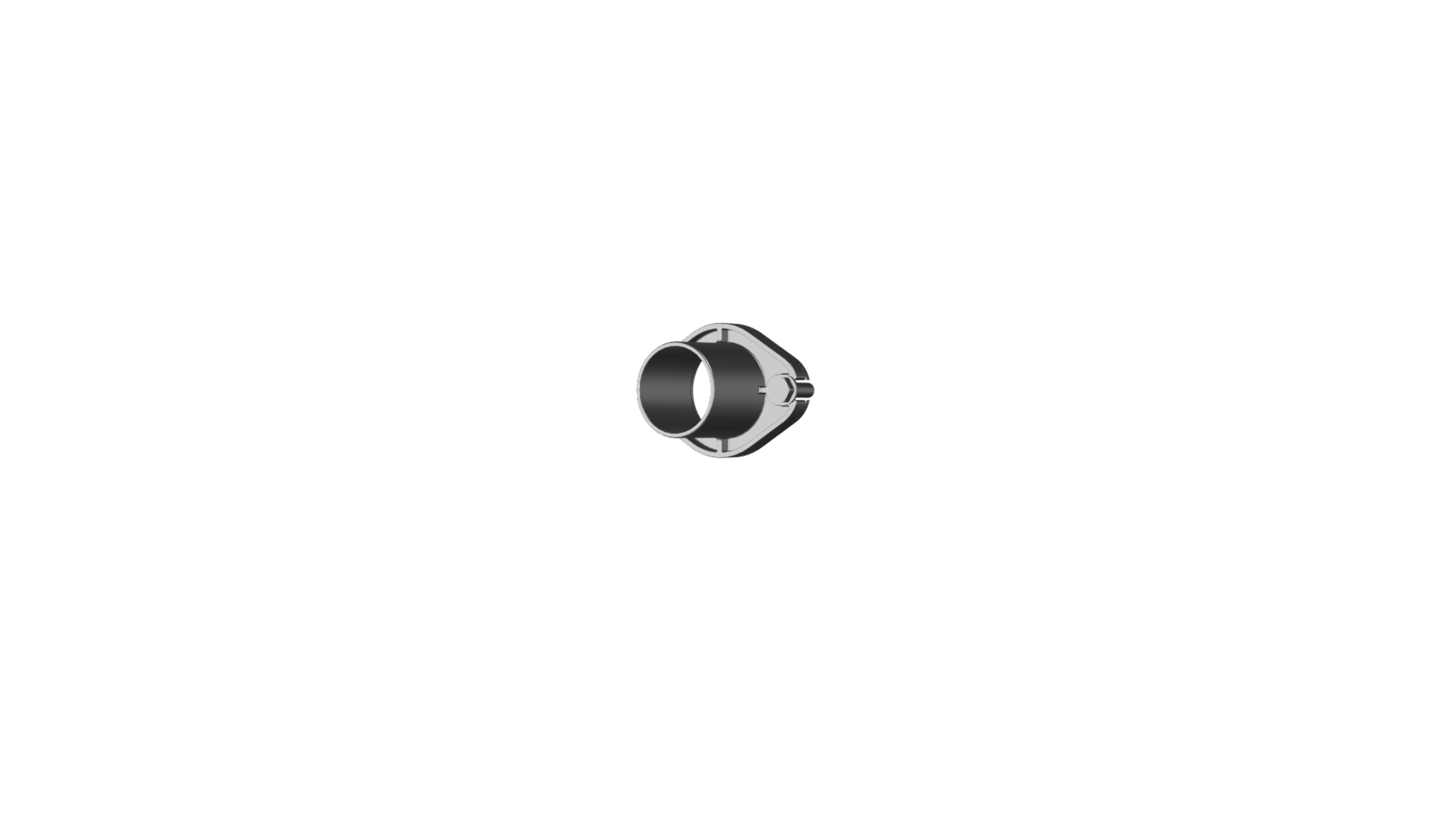

- Hose Flange

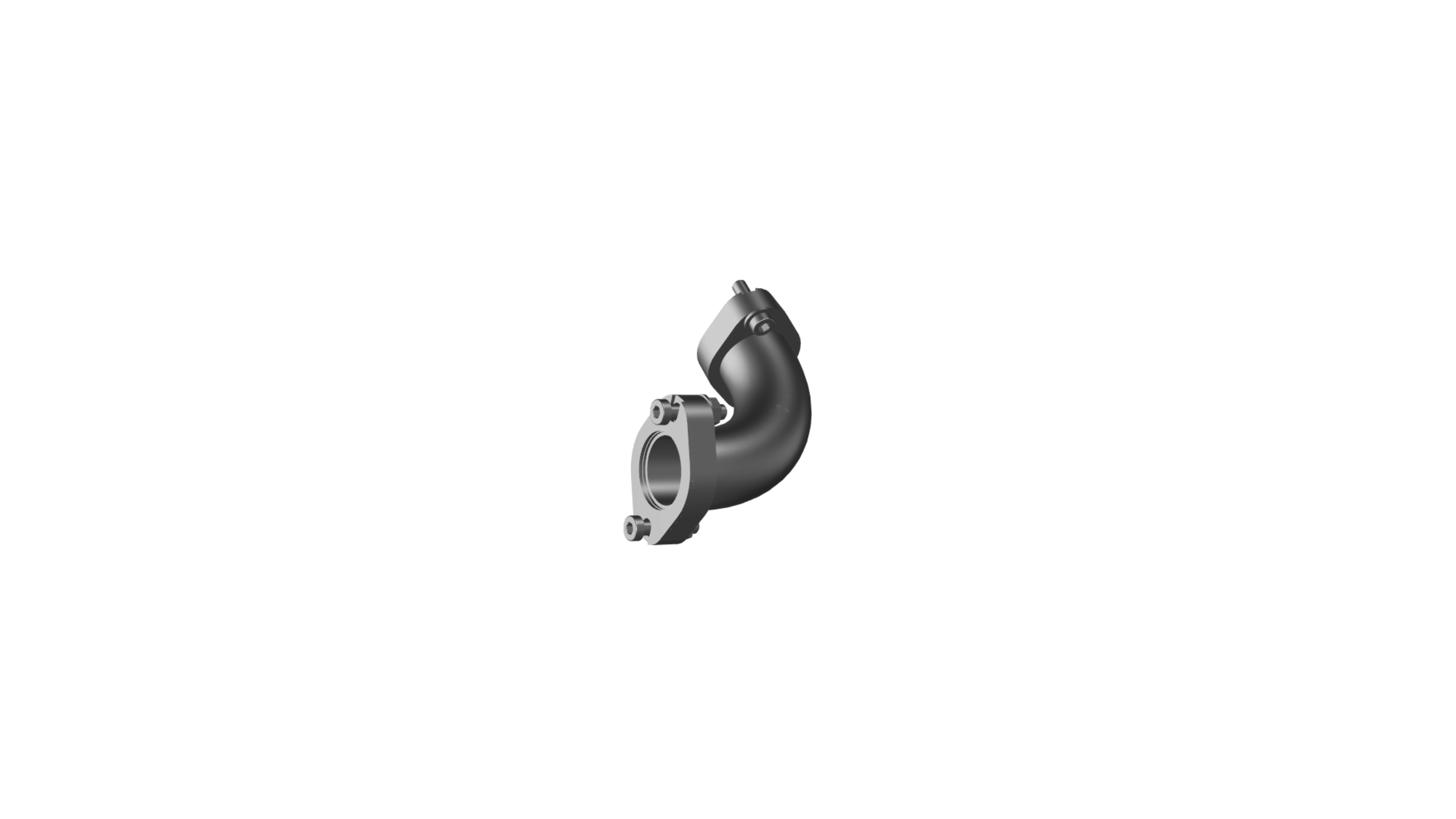

- 90 Elbow

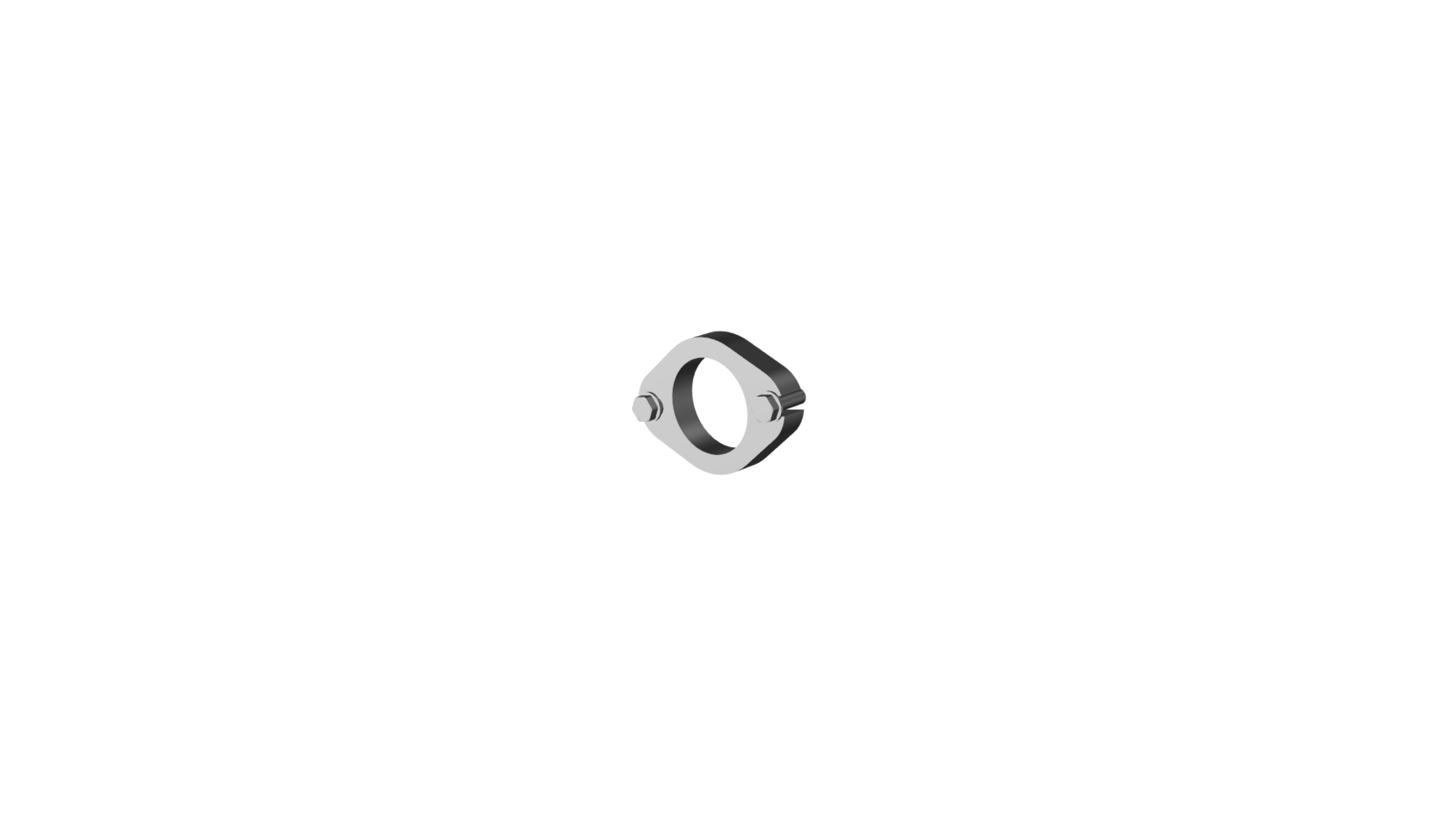

- Threaded Flange

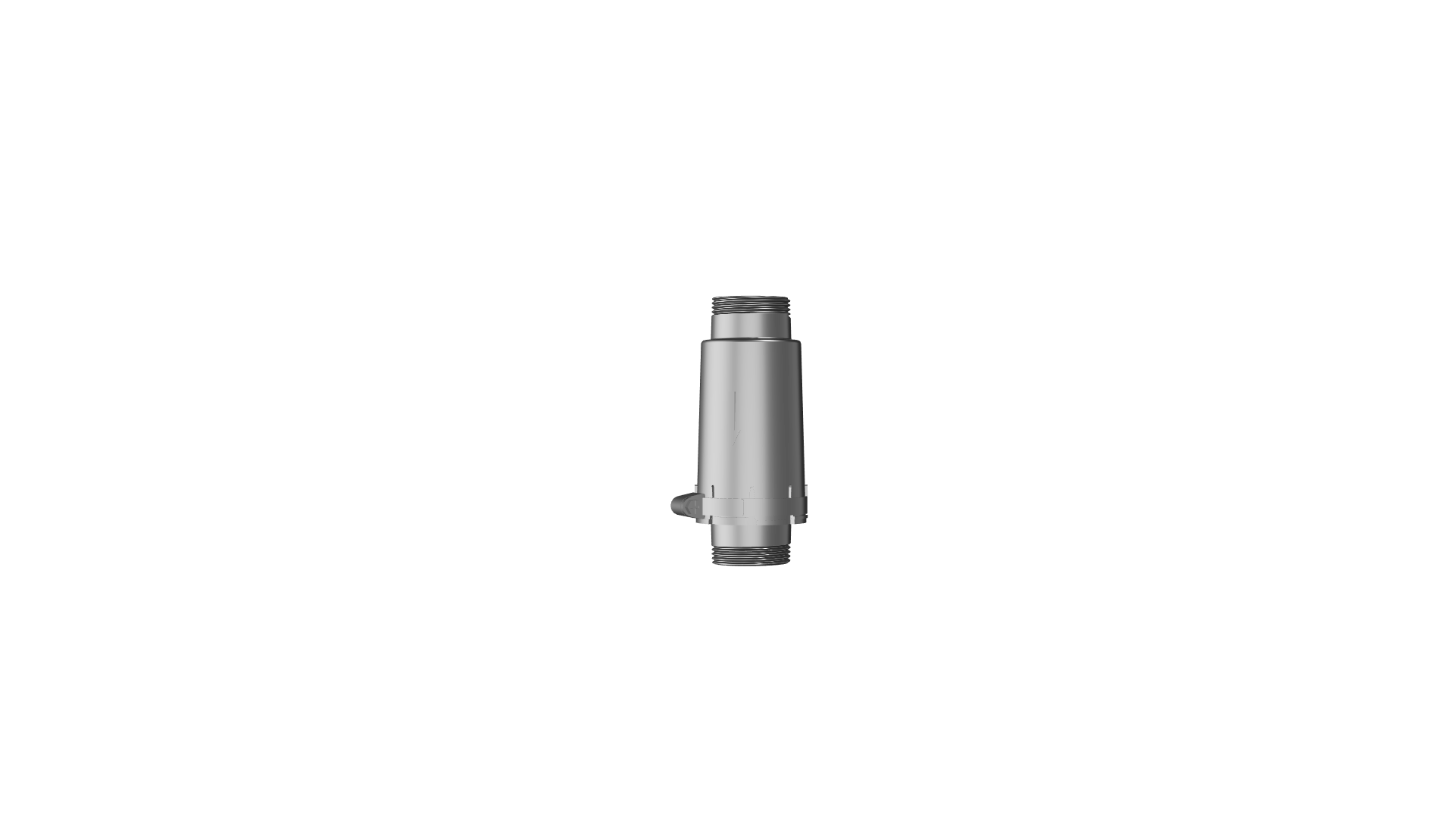

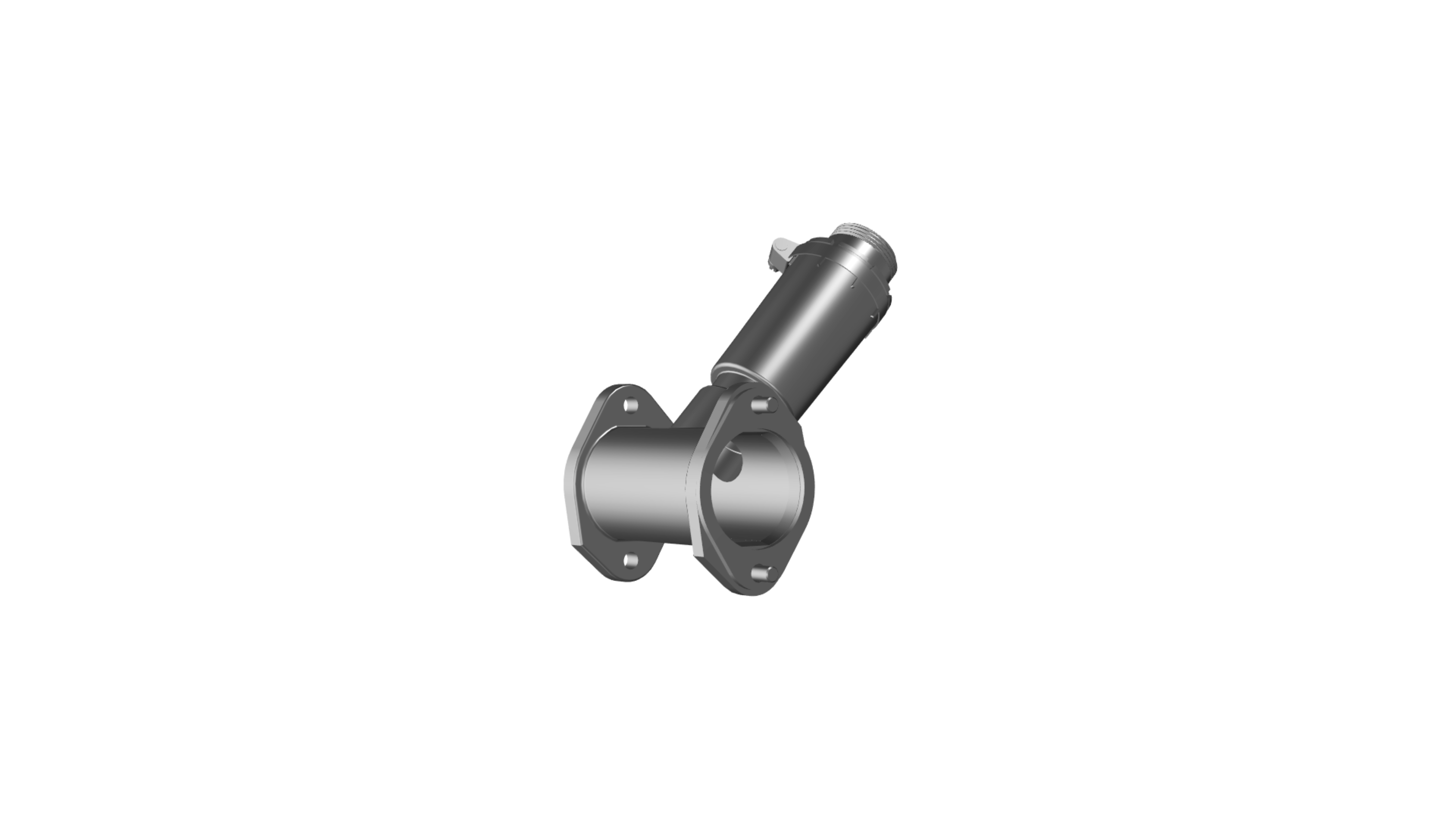

- Pressure Relief Valve For Pipeline Mounting
- Non-Return Valve

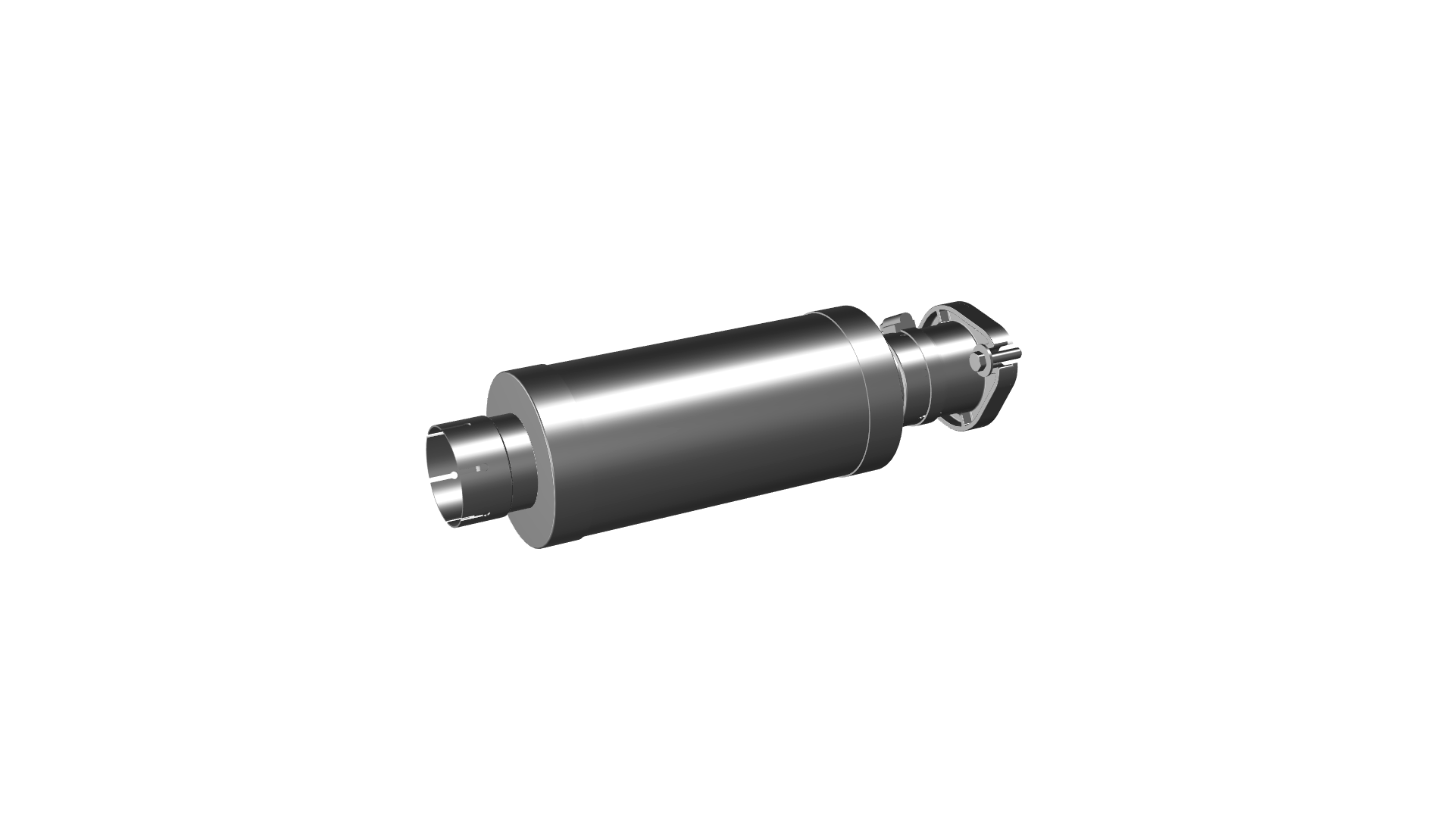

- Additional Silencer
FAQs
Single-stage blowers offer higher flow rates at lower pressures. Double-stage models provide higher pressure at reduced flow.
