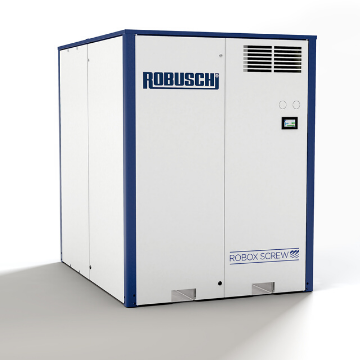

Screw Blower - Robox Screw Unit

The ROBOX Screw blower unit up to 1,000 mbar(g)

NEW RANGE FOR SIZES 3.0, 3.5 AND 4.0

The new Robox blower unit design allows you to fit either a lobe or a screw airend into our engineered Robox enclosure. To accommodate this innovation, our teams performed a complete package redesign. You can call it thinking outside the box to create our best Robox yet.

The Robox Screw is able to reach up to 1,000 mbar(g) with a maximum capacity of 10,100 m³/h.

Unique design, best in class footprint, low noise, easy installation, easy to service and maintain access throughout the range.

Unique Design, Best-in-class Footprint

Thanks to its exclusive features, the new Robox Screw blower unit has compact dimensions with the possibility of side-by-side installation. It is easy to be installed with no requirements for ducting. The Robox Screw blower’s compact dimensions will optimise your floor space usage. The new Robox Screw blower unit size 3.5 requires on average 11% less space to deliver 22% more air flow.

One Package Two Technologies

Take advantage of the one solution for both lobe blower and screw blower technologies. Whether revamping plants or your processes, you can review and compare each technology’s benefits for your operation before you commit to buy. As a trusted blower manufacturer, Robuschi ensures that every solution meets the highest standards for efficiency and reliability.

Our combined offering also includes heavy duty blower options and advanced industrial air blower systems for demanding applications. Additionally, the design flexibility of our rotary blower technology guarantees optimal performance across a wide range of industrial processes.

Low Noise

Low noise emissions are ensured by our new discharge and suction silencer design. In addition, canopy enhancements provide noise reduction thanks to special sound proofing material and upgraded panel thickness. In addition, the enclosure air inlet and outlet ducts are muzzled with a lined single-chamber plenum and lined bends.

Easy Installation

Save time and money thanks to the easy and flexible installation of the new Robox Screw blower unit. Handle the Robox with ease utilizing the rigid base which has dedicated channels for forklifts. Place it on any even surface, with no need for special foundations. Thanks to its compact design, the Robox can be quickly and easily integrated into your existing system.

Accessible Service and Maintenance

The design of this new Robox Screw blower unit ensures that the service points are easily accessible. As a leading industrial blower manufacturer, Robuschi focuses on making maintenance simple and efficient for all users.

To help you see inside, the enclosure side doors are hinged and removable, making it ideal for heavy duty air blower applications and ensuring smooth upkeep for air blower industrial systems.

CDL- RSW – Premium Oil-free Airends

The new Robox Screw blower unit accommodates the state-of-the art CDL airend. The patented screw blower has 3x5 profile rotors designed with wide-diameter shafts to reduce the deformation caused by internal and external loads. This ensures the blower can work efficiently in even the harshest conditions.

The CDL airend is equipped with seals that use a permanent non-wearing design to extend longevity, and reduce maintenance costs. It also uses high precision and low friction bearings to provide absolute strength and stability on multiple planes to handle extreme applications.

The RSW airend is equipped with a wide-diameter shaft rotor design to reduce the deformation caused by internal and external loads. This ensures that the screw blower unit can work efficiently in even the harshest conditions. The bearings have an increased lifespan thanks to the reduced number of revolutions they have to make. The seals on the conveyed gas and lubricating oil are also “wear-free”. The RSW airend is available for the current sizes 2,3 and 5.

New Compact Suction Silencer

A newly designed Silencer is equipped with a dedicated filter cartridge for improved reliability and quicker maintenance. This minimises pressure drops. Noise reduction is provided by a new absorptive and reactive internal resonance chamber design.

Robust Discharge Silencer

A Reactive discharge silencer with increased thickness and spark arrester. This design prevents contamination of conveyed gas with sparks generated from the blower. Costly spark traps are no longer necessary.

Check Valve

Proven and robust VRC check valve specifically designed by Robuschi is now positioned within the device to ensure a quick and easy inspection, and replacement.

Lubrication Systems

This system provides lubrication alternatives for various operating environments. It is a dual splash lubrication system that is simple, reliable and compact. It also provides minimal maintenance without the need for an external oil circuit. A forced lubrication system can also be ordered as an option.

State-Of-The Art Noise Enclosure

The new powder coated enclosure ensures long lasting protection from corrosion, chemicals and the environment. In addition, the noise enclosure’s structure is equipped with tight-fitting frames for the doors and roof support. All the panels/doors are independent of each other and easily removable for inspection.

The new hood design inhibits noise emissions thanks to the enclosure’s air inlet and outlet ducts which are muzzled with a lined single-chamber plenum and lined bends. The closed baseplate is suitable for any type of floor guaranteeing proper noise reduction.

In addition the enclosure provides:

Side-by-side installation
Baseplate equipped with dedicated holes for easy access by forklift
Dedicated access for relief valve inspection and setting to reduce maintenance time
Access for routine maintenance operations from the front/rear/left/right side of the hood
Easy service with rear panel opening without the need to disconnect the process pipe
Electrical cable installation possible both from the top and bottom

The user-friendly Robox Connect touch screen features an intuitive menu, offering a real-time view of the operation of the Robox Lobe and Screw units. This interface enables continuous monitoring of your equipment, facilitating early detection of issues and malfunctions to safeguard your investment. Additionally, the controller efficiently manages a range of operating functions accessible both from the built-in touch screen and remotely.

The embedded communication protocols are Modbus RTU, TCP.

Main Controller Functions

Multiple language configuration
12 analog and digital inputs / outputs
Interval maintenance
Parameter data transmission via Modbus RTU, TCP.
Parameter trends
Warning & Alarm detection
Data logger for service troubleshooting
Suitable for any kind of starter device

What Are the Controlled Parameters?

Suction pressure (P1)
Discharge pressure (P2)
Oil injection pressure (P3)
Discharge temperature (T2)
Oil sump temperature driven side
Enclosure temperature (T5)

The Controller connects the Robox unit with the new Robuschi cloud. Smart and proactive real-time monitoring service designed to offer comprehensive and up-to-the-minute data crucial for maximizing the efficiency and operation of your equipment

The Robox Screw blower unit is available in a new plug and play version. It’s simple, reliable and a great value for your money. This includes:

Premium frequency converter for maximum performance and reliability
Electrical cabinet with IP54 protection degree and a forced cooling system
Modular installation close to Robox unit or in another location via wired connection for maximum flexibility
Programmed control panel for process optimization and regulation
Industry 4.0 solution with data transmission through the most popular communication protocols (Modbus, Profibus-Profinet, Canopen)
Preset frequency converter for peace of mind
Additional system for continuous monitoring of main parameters (optional)
Quick start guide included
EMC certification

Blower Unit Plug & Play Frequency Converter
