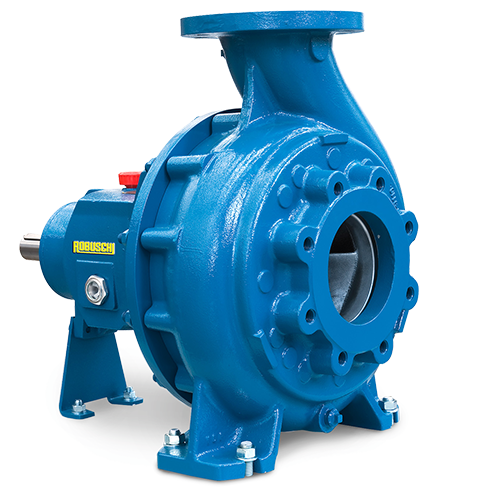

Centrifugal Pumps Equipped with Open Impeller PROMIX

is equipped with open impeller and designed with wide cross sections between the blades to pump, without any clogging problems, thick or highly viscous liquids with non-fibrous solid particles, and solutions with high solid content. It is suitable for heavy duty in pulp and paper, in sugar, chemical and food processing applications.

The main features are:

• The impeller design makes it possible for the pump to reach a high energy efficiency.
• The casing is provided with replaceable wear plate which can be adjusted externally to maintain the clearance with the impeller constant so as to ensure the high efficiency of the pump.
• Inlet nozzle with large dimensions to ease the suction of liquids containing a high percentage of solid particles and to reduce the impeller wear.
• Heavy duty shaft, flexure on seal less than 0.05 mm.
• Heavy duty support (RACNS) with oversized and higher lifetime bearing and higher stiffness granting pump heavy duty and less vibration.

is designed with a special casing in order to generate the pumping vortex. In this way the liquid flows through the pump without entering the impeller vanes. This avoids clogging problems with viscous liquids containing solid particles and fibrous materials, and liquids with air. It is suitable for use in the pulp and paper industry, the sugar industry, the chemical industry, in the food processing industry, in iron metallurgy, in sewage treatment plants and shipyards.

The main features are:

• Replaceable wear plate with special hydrodynamic profile
• Heavy duty shaft, flexure on seal less than 0.05 mm
