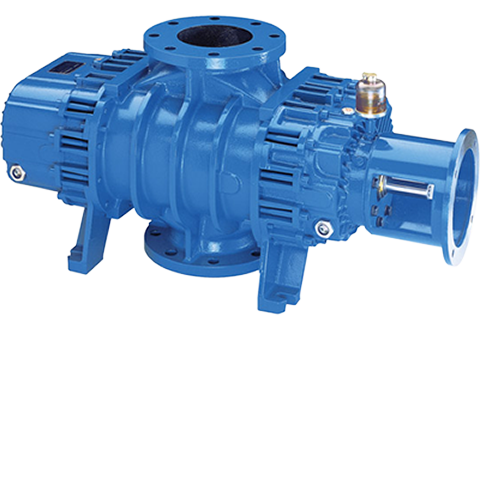

A new range of high vacuum rotary lobe blowers, RB-AV series, are a two-lobed vacuum blowers used to increase the capacity of primary vacuum pumps, operating at their minimum suction pressure (as a booster), along with a primary vacuum system (VP). It fits pressure level lower than 33 mbar(a).
- Vacuum up to 0.001 mbar(a)
- Capacity from 200 to 30,000 m³/h
These boosters are usually used alongside primary vacuum systems like liquid ring, screw, vane, piston or claw vacuum pumps. Most often they are installed vertically, above the primary pump, ensuring a space-efficient installation.
RB-AV SGA with with motor coupling
RB-AV BY with by-pass
Expert Engineering
Decades of design experience of our team help us deliver precise rotor synchronization for smooth, high-speed performance.Consistent Operation
RB-AV uses helical gear technology to ensure stable and reliable performance in demanding vacuum environments.Energy-Smart Design
Optimized rotor profiles reduce energy loss while maximizing output efficiency.Built to Last
Heavy-duty shafts and steel cage bearings provide exceptional durability and long service life.Simplified Maitenance
Transparent oil inspection windows make routine maintenance quick and easy.Advanced Safety
Dual sealing with integrated oil and water cooling protects the system under extreme conditions.The RB-AV series ensures reliable performance even under the most extreme conditions, exceeding the most rigorous endurance tests. Designed to meet the demands of high-vacuum industrial applications, it is used in evaporation and distillation processes in the food and chemical-pharmaceutical sectors, in degassing for metallurgy and thermoelectric plants, and in metallization processes in the automotive industry.
Food and Beverage
Dairy processing, food packaging, filling and closing machines, evacuation, food preservation, evisceration, pneumatic conveying, concentration systems, degassing, evaporation, drying, removal of impurities, milking systems, fermentation, process fluids handling.
Chemical and Pharmaceutical Industry Applications
Coating, cooling, distillation, degassing, drying, gas compression, impregnation, pneumatic conveying, solvent recovery, thin layer evaporation, clean liquid handling, process liquid handling
Lime and Cement
Pneumatic conveying, lime cement fluidization, combustion air, cooling air, combusted gas recovery, fluidization, FGD, lifting
Power Generation and Oil & Gas
Flue gas desulphurisation, bed combustion fluidization, condenser evacuation, sand oil fields recovery, recovery of cleaning liquids
