Robox-Turbo-Blower For Wastewater Tretament

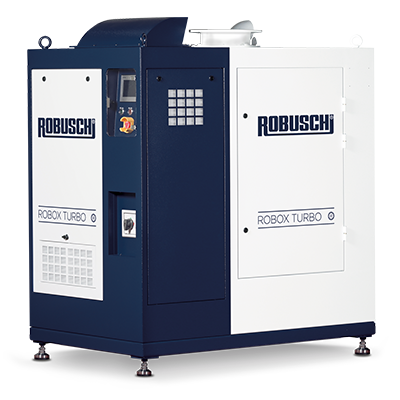

Robox Turbo blower unit up to 1,500 mbar(g) and 26,500 m³/h.

Energy consumption has been a priority for a long time, but now more than ever, our customers are looking for on-going reductions in energy costs.
In wastewater treatment plants for example, energy can account for as much as 75% of the overall operation costs of the facility. Aeration systems are the largest energy user (more than 60% of the total electricity cost). State-of-the art aeration equipment can make the difference, not only to reduce your carbon footprint, but substantially lower lifecycle costs.
Introducing the Robox Turbo range of blowers that can ease energy savings concerns for customers who are conscious of their environmental and financial impacts (total cost of ownership).

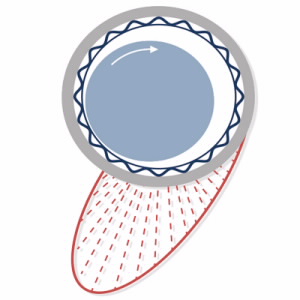

Our Robox Turbo range of blowers offer a unique design using long lasting air foil bearings. This allows for a best in class footprint, low noise, plug & play compatibility, low cost and easy maintenance throughout the range.
When choosing the right technology to help you save energy and reduce your environmental impact, trust our Robuschi Experts to offer you the best solution.

Robuschi Robox Turbo Animation 2023 EN

To load this content, approve your cookie preferences and allow the required cookies.

High Efficiency for Low Lifecycle Cost
A superior design of the Robox Turbo ensures energy savings and low lifecycle costs. Furthermore, the high-speed motor can assure high efficiency over the entire operating range.

Compact Design for Easy Installation
The compact design of the Robox Turbo helps to reduce costs and minimize installation space.

Low Noise
Limited noise emission is assured by the concept design. In addition, the silencers guarantee quiet running to meet the most stringent noise regulations common in today’s work sites.

Oil Free For Any Application Requirement
The Robox Turbo is completely oil-free to meet the most rigorous of environmental standards and reduce contamination.

Plug & Play: Ready to be Installed

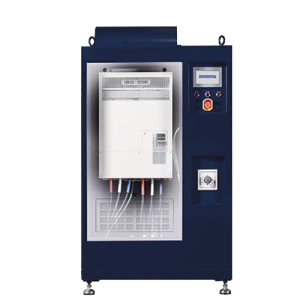

Thanks to its electrically powered cabinet and an integrated variable frequency drive, the Robox Turbo is easy to install. All it needs is a connection to the pipework and electric power; making it virtually “plug & play”!

Easy and Cost Effective Maintenance

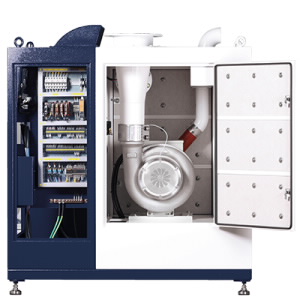

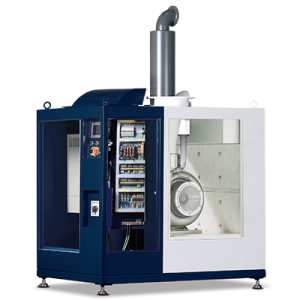

The Robox Turbo is designed for easy access to internal components; all you have to do is open its front door. Its maintenance costs stay low thanks to the small number of moving components and their simple and robust construction.

Reliability
The Robox Turbo is manufactured with high quality components and carefully tested to offer steadfast and continuous operation for whatever application process you throw at it.

Extensive Range of Options
The Robox Turbo can be configured with a wide range of options and accessories to meet the customer’s exacting requirements. For instance, several types of silencers are available as well as a special noise enclosure for outdoor installation. Alternatively, you may select an option designed for high temperatures, featuring a single power source equipped with a built-in cooling system, which can function effectively across a broader temperature spectrum from 40 °C to 50 °C.

Don’t hesitate to ask us about the many options we offer.

Wide Turndown
The Robox Turbo is able to meet a large range of demand for compressed air without wasting energy. Thanks to its integrated variable frequency drive (VFD), it manages to maintain the highest efficiency and flexibility

Innovative Controller

The Robox Turbo is equipped with an advanced control system that is very user friendly by way of an intuitive menu. It also offers the ability to monitor the Robox Turbo continuously to ensure reliable operation and proactive protection.
The controller manages a variety of operating modes and allows for a remote connection to verify measured parameters and respond to possible alarms.

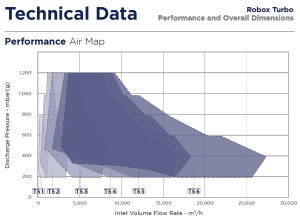

The Robox Turbo range is able to reach up to 1,500 mbar(g) with a maximum flow of 26,500 m³/h.

Our Engineers are at your disposal to size the Robox Turbo to best fit your plant. They will provide all the technical information and support as well.

Innovative Design for High Efficiency

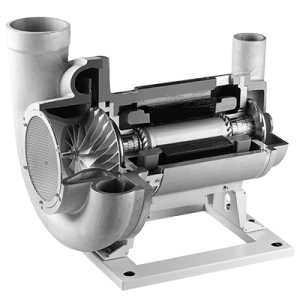

Turbo Blower technology relies on centrifugal compression which generates pressure by transforming kinetic energy (speed) into static energy (pressure). This compression is generated within the blower’s air end. To control every running and safety parameter of the unit, a PLC-based controller ensures safe and sound operation. Additional core components are also present to guarantee a complete piece of mind for the product as well as its operators.

High Speed Motor and Drive for Maximum Efficiency
A key aspect of turbo technology is the need for a high rotational speed required to reach the operating pressure level. The rotational speed is generated by a high speed motor, coupled with a high frequency drive, both controlled by a PLC-based unit controller. The rotational speed together with additional parameter adjustments is ensured by the machine without the need of user intervention.
The Robox Turbo is equipped with a variety of high speed motors providing the highest efficiency and reliability depending on the blower size, All Robox Turbo are supplied as standard with PMSM providing the highest effciency and reliability:

• PMSM Permanent Magnet Synchronous Motor (from 100 Hp to 700 Hp)

Wastewater Treatment

Aeration systems are the largest energy user (more than 60% of the total electricity cost). Up to 75% of your compressed air costs will be spent on energy, so state-of-the-art aeration equipment can make the difference, not only to reduce your carbon footprint, but by substantially lower life cycle costs.

As industrial wastewater treatment aeration lanes and tanks become over 10 meters deep, they require higher powered blowers to function properly. In addition, the effluent used can be denser and/or have more solids, which can require higher pressure for the process to operate as designed. This is where a blower rated up to 1,500 mbar(g), like the Robox Turbo, is needed to run the processes smoothly and

efficiently.

Fermentation

During the fermentation process where organisms are converted to carbohydrates, production can be increased by introducing clean, warm air into the process. For larger and taller fermentation tanks, a blower with a high pressure output of up to 1,500 mbar(g) is required to provide 100% oil-free air at a high pressure – the Robox Turbo check all those boxes!

Pneumatic Conveying

The Robox Turbo is ideally designed to be used in light phase conveying applications where clean, dry,

pulse free and 100% Oil-Free air is required. Pneumatic conveying is a method of transferring large volumes

of bulk materials such as powders, flour, cement and granulated product.
